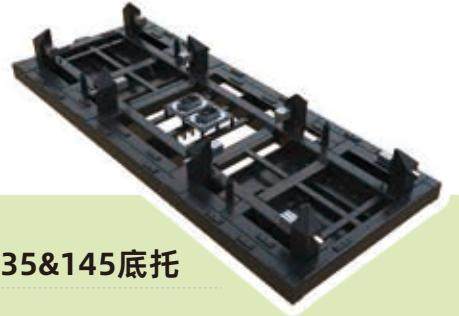

Mining Truck Battery Swap System Vehicle-Mounted Pallet Solution

Negotiable
Shanghai Enneagon Energy Technology Co., Ltd.
China
No. 258 Xupan Road, Xuhang Town, Jiading District, Shanghai City
13917000520
Online Contact
Favorite
Product Introduction

Stable Support · Efficient Battery Swap · Built for Heavy Duty

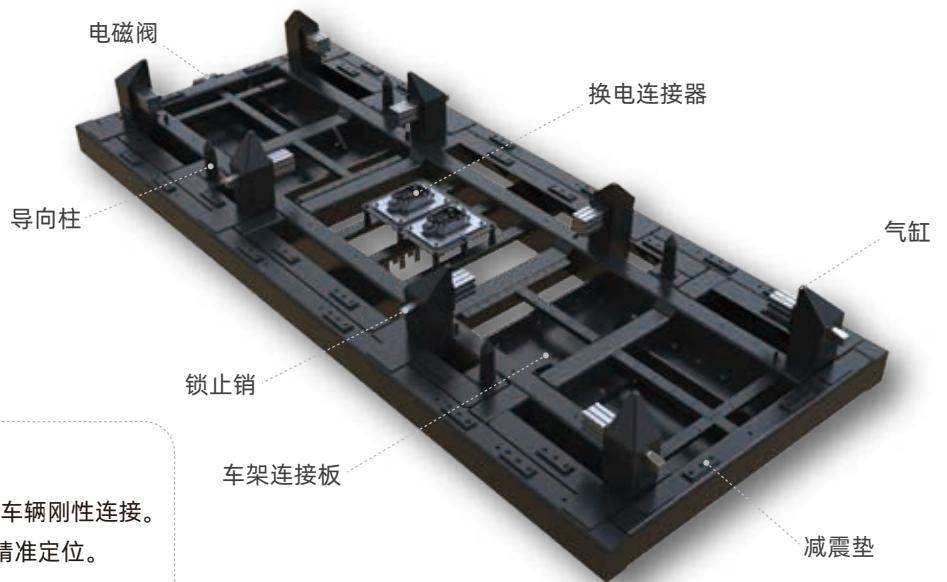

Core Highlights

  • Robust and Stable: Made of Q355B high-strength steel, specifically engineered for harsh mining conditions.
  • Fast Swap Core: 8-cylinder drive enables second-level precise locking and release.
  • Safety Guidance: Unique guiding design ensures smooth battery box placement, preventing damage.
  • Comprehensive Compatibility: A series of products covering mainstream mining truck models from 105 to 145 tons.
Product Parameters
  Mining Truck 105 & 120 Chassis Mining Truck 135 & 145 Chassis
Name Parameters Parameters
Overall Dimensions (mm) 465 (H) * 3510 (W) * 1260 (D) 465 (H) * 3510 (W) * 1460 (D)
Main Material Q355 Q355
Chassis Weight 1.1 tons 1.3 tons
Number of Cylinders 8 8
