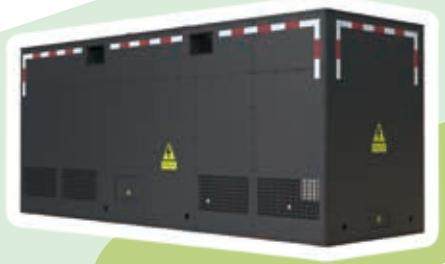

CATL 1000

Negotiable
Shanghai Enneagon Energy Technology Co., Ltd.
China
No. 258 Xupan Road, Xuhang Town, Jiading District, Shanghai City
13917000520
Online Contact
Favorite
Product Introduction

Safe, Efficient, and Worry-Free Battery Swapping

Core Highlights

  • Strong Standardization and Compatibility: Belongs to the same standard system as commonly used mining truck battery boxes, facilitating interchangeable use in mining truck scenarios.
  • High-Safety Design: Clearly requires a 150mm safety clearance on all sides during installation to ensure heat dissipation, maintenance, and operational safety.
  • Convenient Battery Swapping: No obstructions above during swapping, supports fast-swapping mode, enhancing mining operation efficiency.
  • Large Capacity for Mining Trucks: Wide-body design (4300mm) indicates substantial power reserve, meeting the demands of high-intensity, long-duration mining truck operations.
Product Parameters

CATL 1000 Battery Box Technical Parameters

Name Parameter
System Configuration Method 4P240S
Rated Capacity 1296Ah
Nominal Energy 1001.54kW·h
Rated Voltage 772.8VDC
Voltage Range 600~876VDC
Maximum Continuous Charging Current Single gun 250A, Four guns 1000A
Peak Discharge Current 1300A (25℃, 60s)
Self-Discharge Rate/Month (25℃, SOC100%) < 3.5%
Insulation Requirement ≥8MΩ (1000VDC)
System Operating Ambient Temperature -35℃~+60℃
Discharge Ambient Temperature -35℃~+60℃
Charge Ambient Temperature 0℃~+60℃ (The battery system is equipped with a heating solution; charging is not allowed when the battery temperature is below 0℃)
Battery Brand CATL
Battery Configuration 20 D02 Box PACKs
Thermal Management System Water-cooled Heating + Water-cooled Cooling
Communication Protocol Complies with the new national standard GB/T 27930-2015
IP Protection Rating Structure IP2X / Electrical IP67
Dimensions (mm) 1835(H)*1400(L)*4300(W)
Total Weight 9.3t

CATL 1000 Battery Box Product System Configuration

Name Function Description Quantity
Battery Box Frame The main structural body of the battery box, used to carry the internal equipment components, providing hardware support for battery box swapping. 1
Vehicle Mounted Base Tray Installed on the vehicle frame, used to carry the battery box structure. It has locking and unlocking functions, is equipped with a female connector, and provides hardware support for battery box swapping. 1

CATL D02 Battery PACK

 The energy storage unit of the battery box, capable of charging and discharging. Can be equipped with BMS (Battery Management System) and TMS (Thermal Management System) for data management and thermal management of the battery PACK itself. Configured in a 4-parallel grouping. 20
High-Voltage Distribution Box The power distribution unit of the battery box. According to the output commands from the control unit, it realizes the power distribution and protection functions for the battery box. The battery box has a built-in BMS control unit responsible for logical control, data management, and information exchange with the vehicle. 1
Water Cooling Unit The cooling and heating unit of the battery box, a core component for the cooling and heating functions of the TMS. It cools and heats the battery PACK through liquid cooling and liquid heating. 2
Quick-Swap Connector A key component for battery box swapping. It is an electrical connector that, as needed, connects or disconnects the circuit between the battery box and the vehicle to complete energy transmission and data exchange. Configured with 2 ports. 2
Charging Socket The interface device for power transmission. Charging operations on the battery box are performed through the charging socket. The purpose of configuring a separate charging socket in this system is to achieve dual-purpose charging and swapping functionality. Supports dual-gun and four-gun charging modes. Single-gun charging 250A, four-gun charging 1000A. 4
