Core Values
- Minimal Footprint: 11m (including lane) × 4.3m, easy deployment in old stations/mining areas
- Ultra-High Throughput: 4.5-minute rapid battery swap, service capacity increased by 25% year-on-year
- Flexible Expansion: Supports dual-station combination and dual-channel battery swap
Technical Specifications
- Space Efficiency: 48m² space, 120 swaps/day capacity
- Workstation Count: 6 stations (5 charging bays + 1 transfer position)
- Ambient Temperature: -20 ~ 55°C (High-cold: -40 ~ 55°C)
- Charging Power: Flexible stack 1600kW-2400kW optional or charging pile 320-480kW optional
- Power Distribution Requirement: ≥1600kVA (depending on charging configuration)
- Compatible Batteries: 282kW·h, 350kW·h, 400kW·h, 600kW·h
- Monitoring System: Power distribution monitoring, charging/battery swap monitoring, security monitoring, metering & billing, settlement system
- Total Weight: Approximately 20 tons
- Parking Range: Front/rear ±200mm, left/right ±200mm
- Vehicle Guidance: Lidar guidance system
- Battery Swap Service Capacity: 120 vehicles (5+1 configuration)

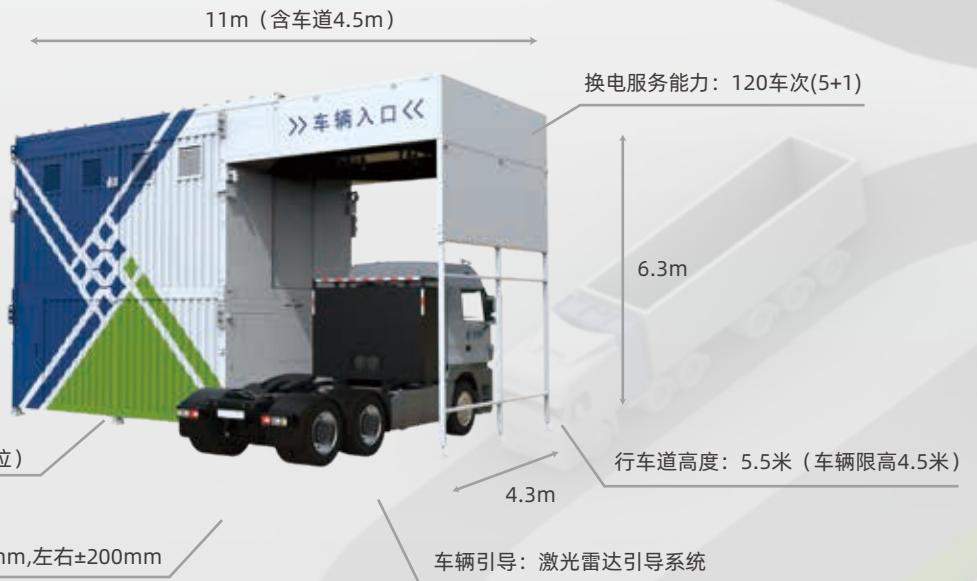

- Equipment Dimensions: Length 11m (including 4.5m lane), Width 4.3m, Height 6.3m
- Driveway Height: 5.5 meters (vehicle height limit 4.5 meters)
