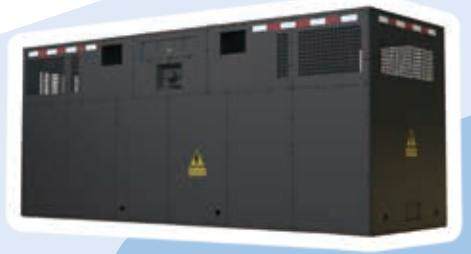

Q-Box 1000

Negotiable
Shanghai Enneagon Energy Technology Co., Ltd.
China
No. 258 Xupan Road, Xuhang Town, Jiading District, Shanghai City
13917000520
Online Contact
Favorite
Product Introduction

Large Capacity, High Safety, Empowering Green and Intelligent Mines

Core Highlights

  • Designed for Mining Trucks: The product is specifically designed for mining truck scenarios, featuring high reliability and environmental adaptability.
  • Standardized Enclosure Structure: Utilizes a modular "Q-Box" design for easy installation, battery swapping, and maintenance.
  • Stringent Safety Specifications: Clearly requires a 150mm safety clearance on all sides, demonstrating a focus on thermal management, maintenance, and emergency situations.
  • Battery-Swap Friendly Design: Emphasizes unobstructed access from above during battery swapping, supporting fast-swap modes to enhance operational efficiency.
  • High-Capacity Battery System: Large dimensions (4300mm wide) suggest a high battery capacity and strong range, suitable for high-energy-consumption mining truck operations.
Product Parameters

Q-Box 1000 Battery Container Technical Parameters

Name Parameter
System Configuration 5P192S
Rated Capacity 1620Ah
Nominal Energy 1001.54kW·h
Rated Voltage 618.24VDC
Voltage Range 480~700.8VDC
Maximum Continuous Charging Current Single Gun 250A, Four Guns 1000A
Peak Discharge Current 1400A (25°C, 60s)
Self-Discharge Rate/Month (25°C, SOC100%) < 3.5%
Insulation Requirement ≥8MΩ (1000VDC)
System Operating Ambient Temperature -35°C~+60°C
Discharging Ambient Temperature -35°C~+60°C
Charging Ambient Temperature 0°C~+60°C (The battery system is equipped with a heating solution. Charging is not allowed when the battery temperature is below 0°C.)
Battery Brand Qiyuan
Battery Configuration 20 Q-Box PACKs
Thermal Management System Water Cooling & Heating + Water Cooling & Cooling
Communication Protocol Complies with the new national standard GB/T 27930-2015
IP Protection Rating Structural IP2X / Electrical IP67
Dimensions (mm) 1835(H)*1400(L)*4300(W)
Total Weight 9.3t

Q-Box 1000 Battery Container Product System Configuration

Name Function Description Quantity
Battery Container Frame The main structure of the battery container, used to carry various internal equipment components, providing hardware support for battery container swapping. 1
Vehicle Mounted Base Tray Installed on the vehicle frame, used to carry the battery container structure. It features locking and unlocking functions and is equipped with a female connector, providing hardware support for battery container swapping. 1
Qiyuan RHB03A Battery PACK The energy storage unit of the battery container, capable of charging and discharging. It can be equipped with a BMS (Battery Management System) and TMS (Thermal Management System) to manage its own data and thermal performance. Configured in a 4-parallel grouping. 20
High-Voltage Distribution Box The power distribution unit of the battery container. According to the output commands from the control unit, it realizes power distribution and protection functions for the battery container. The battery container has a built-in BMS control unit responsible for logic control, data management, and information exchange with the vehicle. 1
Water Cooling Unit The cooling and heating unit of the battery container, a core component of the TMS for cooling and heating functions. It cools and heats the battery PACKs through liquid cooling and liquid heating. 2
Quick Swap Connector A key component for battery container swapping. It is an electrical connector that, as needed, connects/disconnects the circuit between the battery container and the vehicle, enabling energy transmission and data exchange. Configured with 2 pieces. 2
Charging Pile The interface device for power transmission. The battery container is charged via the charging pile. The purpose of configuring separate charging piles in this system solution is to achieve dual functionality (charging and swapping). It supports dual-gun and four-gun charging modes, with single-gun charging at 250A and four-gun charging at 1000A. 4
