en.Wedoany.com Reported - Schneider Electric, a French company, has launched a series of customized solutions to address performance degradation issues of medium and low-voltage variable frequency drives (VFDs) in high-altitude environments, ensuring stable operation across altitudes ranging from 3,000 to 4,800 meters. In high-altitude areas, thin air, large diurnal temperature variations, and weak power grids often cause conventional industrial equipment to suffer from "altitude sickness," leading to reduced performance. As the heart of industrial production, VFDs must be specifically designed to meet these challenges.
The impact of high altitude on medium and low-voltage VFDs primarily manifests in three aspects. First, heat dissipation difficulties: thin air reduces cooling efficiency by nearly 30%, causing the phase-shifting transformer and power units to overheat. Second, insulation performance degradation: large temperature fluctuations cause thermal expansion and contraction of insulation materials, reducing creepage distance and lowering voltage withstand margin to 70%. Third, power grid fluctuation interference: weak end-grid capacity and voltage fluctuations exceeding ±10% can easily trigger instability in VFD operation.
In a molten salt tower-type solar thermal power plant project at an altitude of 3,000 meters, Schneider Electric's Altivar 1200C-S series medium-voltage VFDs, designed for 3,000-meter altitudes, deliver full-load output even in "oxygen-deficient" environments. These VFDs feature input voltage margin, low-voltage and high-voltage ride-through capabilities, and dual redundancy design for control and fan power supplies, ensuring stable operation of molten salt pumps and continuous supply of green electricity.
When the altitude rises to 4,500 meters, for an integrated source-grid-load-storage energy station, Schneider Electric has fully adapted its medium-voltage VFDs for "ultra-high altitude" conditions, customizing everything from component and raw material selection to electrical design and production testing. The Altivar 1200C-S series deeply integrates with solar thermal energy storage scenarios, offering high-altitude customized options, automatic bypass with isolation, 24/7 real-time monitoring, and algorithm optimization solutions.

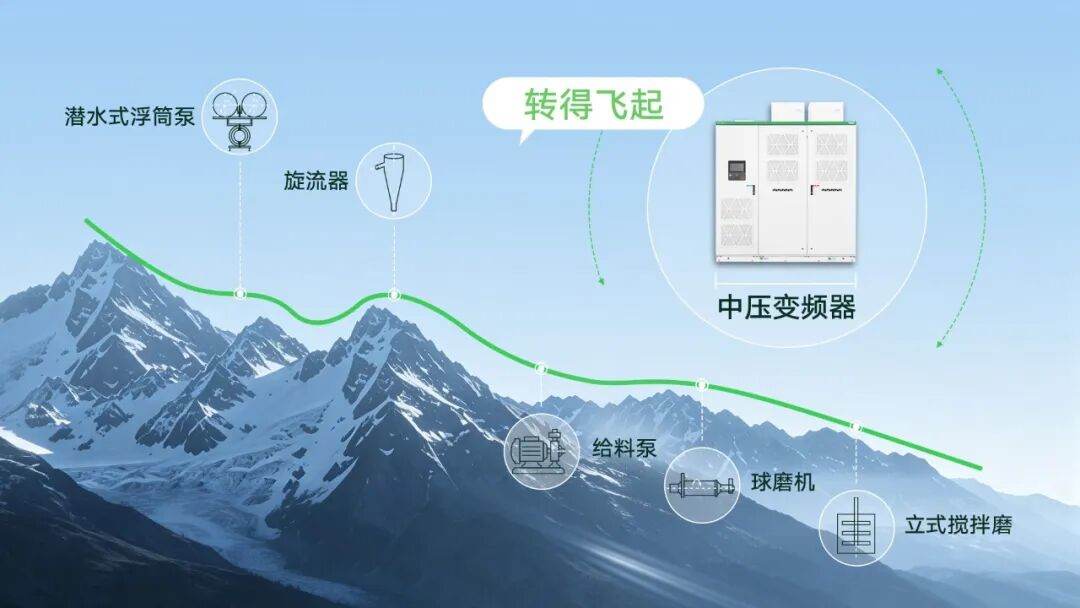

In the high-altitude mining sector, nearly 70 types of minerals have been proven in China's Qinghai-Tibet Plateau, but environmental factors such as thin air, large temperature differences, and heavy dust increase mining difficulty. At 3,300 meters, Schneider Electric provides high-altitude customized phase-shifting transformers and mill-specific functions, combined with inrush current suppression cabinets and IP42-rated enclosures, enabling stable startup and precise regulation. In a renovation project at 3,500 meters, solutions such as high-altitude derating configurations, low-voltage ride-through, and module bypass address the dilemma of "cannot afford to stop or replace." At 4,500 meters, the transformer and power units are each designed with environmental adaptability, and power unit bypass functionality is configured to ensure long-term reliable operation.
Schneider Electric's Altivar Process series low-voltage VFDs extend their "comfort zone" to 4,800 meters. From the initial development stage, this series accounts for low-pressure factors, maintaining safe distances between internal electrical components and requiring no derating up to 1,000 meters. Custom-grade enhanced insulation materials are used in core high-voltage areas such as IGBT power modules and busbars, while circuit boards are coated with reinforced industrial-grade 3C3/3S3 conformal coating to withstand temperature variations, condensation, and dust. Its control algorithms and soft-start capability reduce impact on weak power grids while simplifying installation and commissioning processes.
To meet the needs of industries such as water treatment plants in plateau regions, the Altivar Process series achieves stable output without compromise through comprehensive expansion of safety electrical clearances and creepage distances, custom-grade enhanced insulation materials, standard 3C3/3S3 conformal coating across the entire series, and lightweight deployment solutions. From energy storage to mining and water industries, Schneider Electric continues to elevate the altitude adaptability of medium and low-voltage VFDs through highly reliable product strength and mature solution capabilities.
