en.Wedoany.com Reported - Towers, conductors, and insulators are the most visible parts of an overhead transmission line, but the system depends on a large number of fittings that connect these components and transfer mechanical and electrical loads.

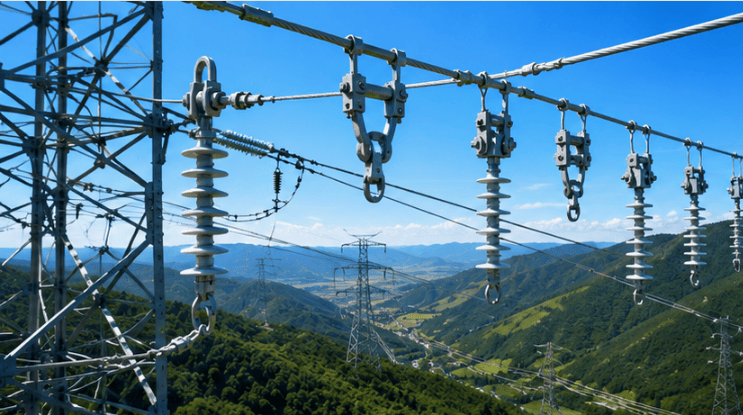

Power Line Fittings include suspension clamps, tension clamps, dead-end assemblies, links, clevises, yoke plates, joints, repair fittings, spacers, armour rods, and vibration-control devices.
The first function of these components is to create a reliable load path. Conductor weight, wind, ice, temperature change, and installation tension must be transferred through clamps, insulator strings, connection hardware, and tower attachments.
Suspension assemblies are commonly installed on tangent structures and at selected low-angle positions. They support the conductor while allowing controlled movement caused by wind and thermal expansion.
Tension and dead-end assemblies are used at line terminals, angle structures, section points, and other locations where conductor tensile load must be anchored. Their mechanical requirements and installation methods differ significantly from those of suspension systems.
Connection fittings such as shackles, links, sockets, clevises, and yoke plates provide the interfaces between clamps, insulators, and structures. Their dimensions, articulation, and load orientation must be compatible across the complete assembly.
If adjacent components cannot rotate or align correctly, eccentric loading and local bending stress may develop. A fitting can meet its individual strength requirement while still creating an unsuitable assembly when combined with incompatible hardware.
Splicing and tapping fittings must provide both mechanical and electrical performance. Compression joints, parallel-groove clamps, and related products should maintain adequate grip while controlling contact resistance and temperature rise.
For bundled conductors, spacers maintain the required separation between subconductors and help prevent collision, twisting, and excessive motion. Spacer dampers may also contribute to vibration control.
Equipment selection should begin with conductor type, diameter, rated tensile strength, tower configuration, insulator design, line angle, environmental loading, and maintenance strategy. These parameters determine whether the complete fitting set can operate correctly.
Manufacturing quality is equally important. Casting, forging, welding, heat treatment, machining, galvanizing, and final assembly can introduce defects or dimensional variation. Cracks, sharp edges, uneven coatings, or unsuitable pin clearances may reduce long-term reliability.
Power line fittings are relatively small compared with towers and conductors, but they carry essential mechanical and electrical functions throughout the line. Reliable design requires the complete assembly to be evaluated as one coordinated system rather than as a list of individually compliant parts.
