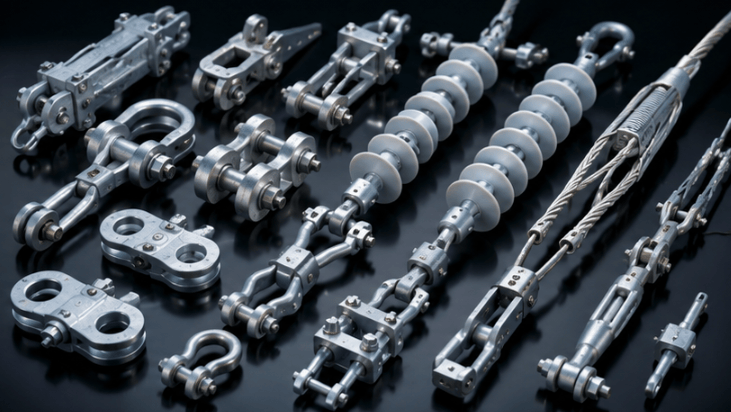

en.Wedoany.com Reported - Suspension clamps and tension clamps are both installed directly on overhead conductors, but their mechanical functions are fundamentally different. Suspension fittings support the conductor and permit controlled movement, while tension fittings anchor the conductor and transfer substantial axial load.
Correct selection of Power Line Fittings must therefore consider conductor construction, tensile strength, line angle, environmental loading, vibration, installation practice, and the geometry of the complete insulator assembly.
Suspension clamps are commonly used on tangent towers. Their design should support conductor weight while limiting local bending, abrasion, and fatigue under wind and temperature variation.
Clamp groove shape, support length, elastomeric inserts, bolt torque, and conductor curvature at the clamp outlet all influence stress distribution. Insufficient holding capability may allow undesirable movement, while excessive clamping pressure can damage aluminium strands.
Tension and dead-end clamps are installed at terminals, angle towers, section points, and major crossings. Bolted, compression, and helical dead-end systems use different methods to transfer conductor tension.
Compression fittings require suitable dies, a controlled compression sequence, and dimensional verification. Inadequate compression can reduce holding strength, while incorrect dies or excessive compression may damage the conductor.
Helical fittings distribute gripping pressure over a longer conductor length. Their application still depends on an exact match with conductor diameter, strand construction, surface condition, and mechanical properties.
Conductor technology is another important variable. ACSR, all-aluminium alloy conductors, aluminium-clad steel conductors, composite-core conductors, and optical ground wires do not have identical thermal expansion, surface hardness, or permissible compression characteristics.
A fitting developed for a conventional conductor should not automatically be applied to a high-temperature or composite-core conductor without engineering verification.
Line angle must also be checked. A single suspension arrangement may be suitable only within a defined angular range. Larger angles may require a double-suspension arrangement, a tension structure, or specially configured hardware.
Wind-induced vibration creates repeated bending where conductor motion is restrained. Armour rods, reinforcing products, and vibration-control devices can distribute stress and reduce fatigue at the clamp outlet.
The clamp must also fit the insulator and connection hardware. Socket size, clevis orientation, pin diameter, string length, and grading devices influence both mechanical assembly and electrical clearance.
Procurement specifications should identify the conductor, allowable line angle, mechanical rating, slip or holding performance, installation tools, and required test evidence. Critical crossings, long spans, and severe ice or wind conditions may require tests on the actual conductor-and-clamp combination.
No single suspension or tension clamp is suitable for every overhead line. Reliable selection requires conductor properties, mechanical load, structure geometry, vibration, installation capability, and maintenance to be considered together.
