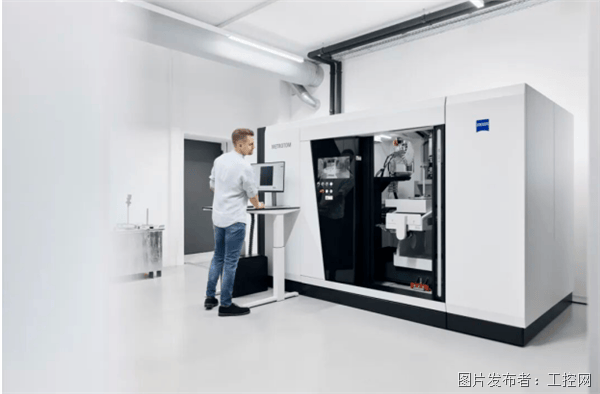

en.Wedoany.com Reported - ZEISS has introduced the industrial CT system ZEISS METROTOM 800 320 kV, which significantly enhances the measurement speed and accuracy of complex components made from high-density materials, aiming to help enterprises reduce operational costs through rapid measurement and high-precision operation.
In high-end manufacturing sectors such as aerospace power systems, new energy vehicles, and energy storage, the demand for inspecting high-density, high-value, and high-safety products is increasing. As a key inspection method, the accuracy and efficiency of non-destructive testing are the primary criteria for users to evaluate inspection technologies. ZEISS's industrial metrology CT systems have a long application history in the Chinese market, serving numerous advanced manufacturing enterprises. The newly launched ZEISS METROTOM 800 320 kV integrates the technical features of the METROTOM series and incorporates industrial design optimizations tailored to customer application scenarios.
This system is equipped with a 320 kV X-ray source, and its design enables scan times up to 75% shorter compared to other ZEISS METROTOM systems. The X-ray tube can operate continuously at high power without requiring a cooling phase, supporting back-to-back scanning with no delays, thereby reducing downtime.
The ZEISS METROTOM 800 320 kV offers a high tube voltage of 320 kV and 500 W, with a minimum focal spot size of 7 µm, ensuring image quality and measurement accuracy. The system's precision meets the requirements of the industry standard VDI/VDE 2630 1.3 for sphere center distance, detection, and form errors, making it applicable in fields such as medical devices, electronics, aerospace, and electric vehicles.
The system can inspect components up to 470 mm in height, 500 mm in diameter, and 50 kg in weight. Application scenarios include quality control of key electric vehicle components (such as battery modules and stators), complex electronic components, measurement of medical implants made from cobalt-chromium or titanium alloys, and analysis of additively manufactured metal parts (e.g., Inconel nickel alloys).
The system is equipped with ZEISS INSPECT X-Ray software, which integrates data acquisition, evaluation, and analysis into a single application, reducing training requirements. The ZEISS Volume Inspection AI module leverages artificial intelligence to automatically identify critical defects, enhancing inspection efficiency.

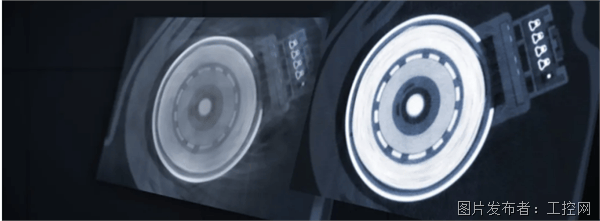

The ZEISS METROTOM 800 320 kV is compatible with the ZEISS scatterControl module, which reduces scattering artifacts during the inspection of high-density components, ensuring clear, high-contrast images that help improve the accuracy of surface determination and defect analysis.
